This page describes the installation of replacement diaphragms on Sheng Wey Carburetors used on small Chinese manufactured motorcycles and engines. Shown here are the 60 mm diaphragms manufactured by JBM Industries, held in place by a thick center section or "tire". High quality ethanol resistant "TSR material".

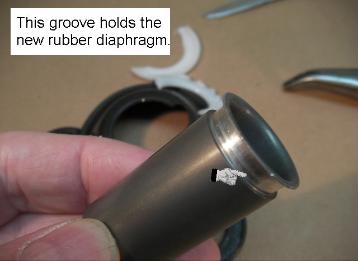

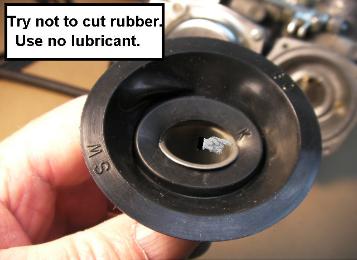

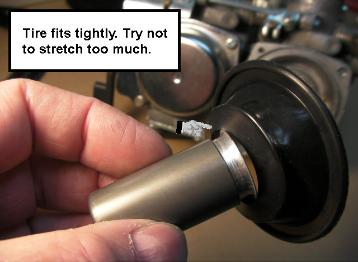

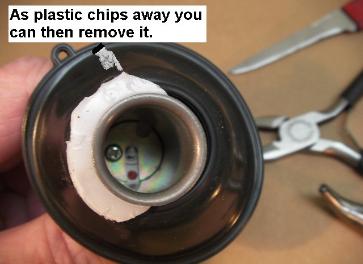

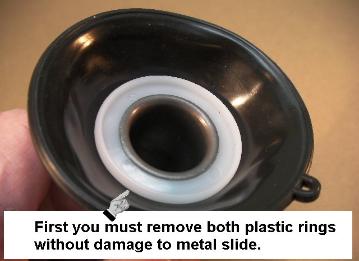

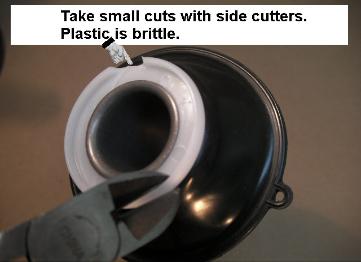

Like all JBM Industries replacement diaphragms, a thick center tire section is used to replace both plastic rings. The hole in the tire is slightly smaller than the carburetor slide groove, so there is tension from the rubber holding the slide.

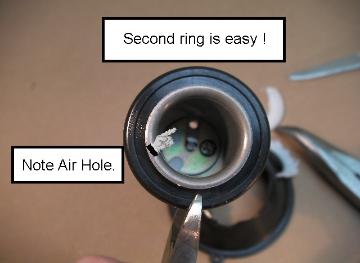

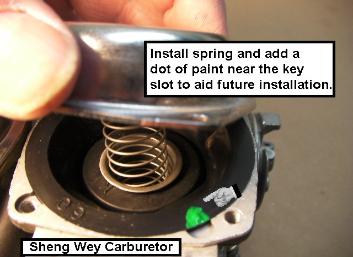

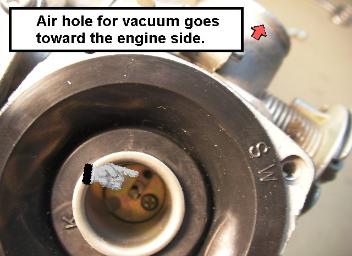

These diaphragms must be positioned by the installer so that slide and air hole faces in the proper direction. Sheng Wey 60 mm OD diaphragm from a Johnny Pag Motorcycle shown.
