Keihin Plastic Slide Replacement Diaphragm Page

Installation of JBM Industries replacement diaphragms on Keihin CV carburetors used on vintage motorcycles such as the Honda V4 engined bikes like VFR400R, VFR400RR, V-65 Magna, and also NC-30 , VTR250, PC800. These vintage Honda motorcycles have a problem with old diaphragms that shrink from ethanol fuel and age. Some are destroyed by carburetor cleaners sprayed down the wrong hole while the diaphragm or membrane is still on the carburetor.
Installation of these replacement diaphragms is not difficult, but should only be done by someone with mechanical skills. This diaphragm was replaced in 15 minutes including the time it took to make these photos. This diaphragm is used on other makes of vintage motorcycle, including the Honda 1100 V4 engine, CB1300, X4, etc. Please see our "HOW TO MEASURE" page. The Keihin VG series page may also be helpful to you, so please check it out.

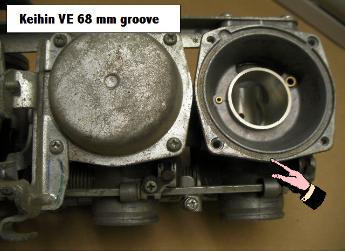

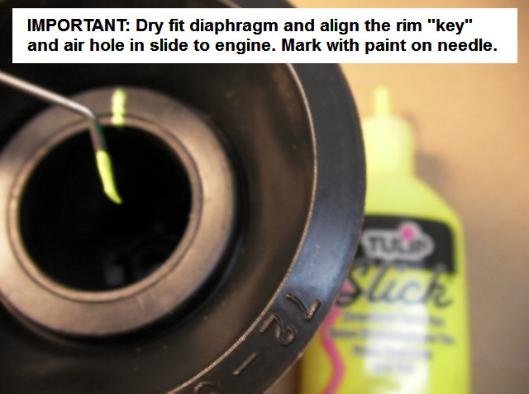

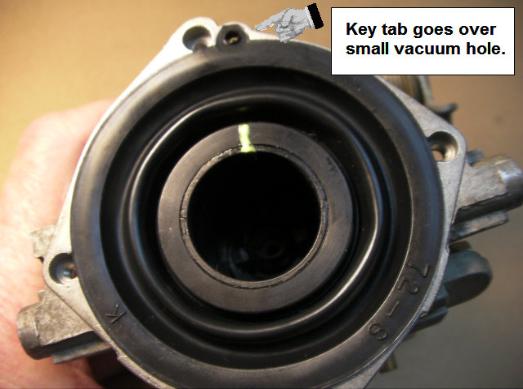

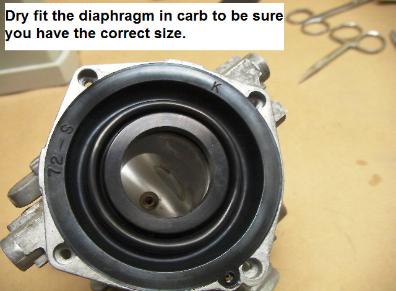

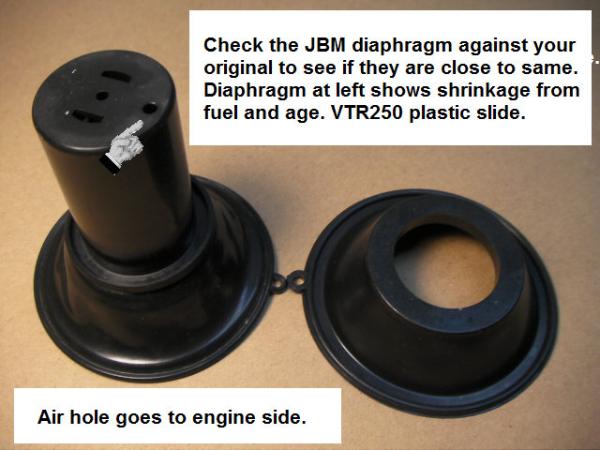

This page shows installation of JBM part K-72-S , a 72 mm diameter diaphragm or librane with key. This shows mounting the central tire on a plastic CV carb slide or piston. JBM Industries uses TSR compound.

Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture

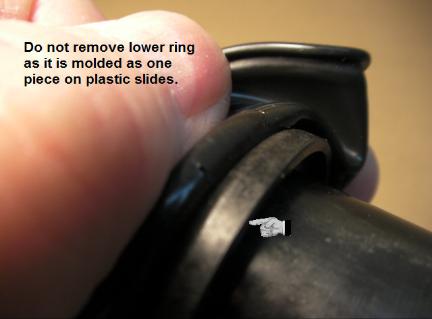

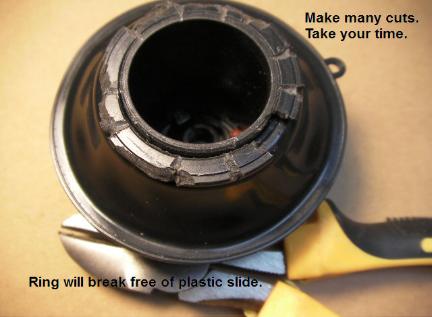

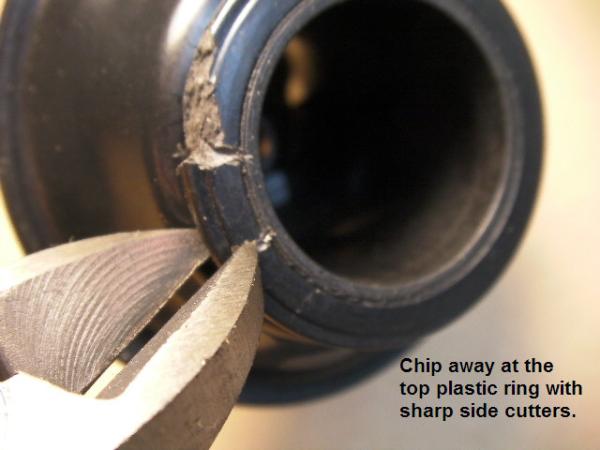

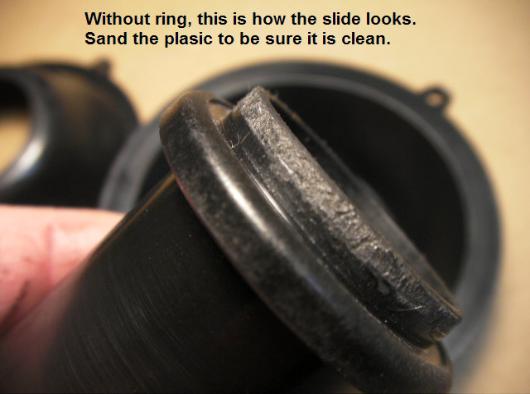

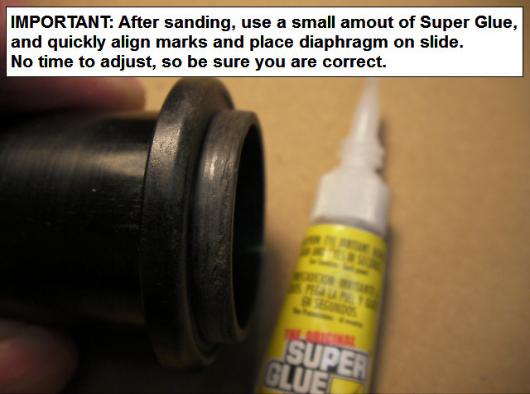

Use small, sharp, side cutters, or jewlers saw.  Slides are brittle.

Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture

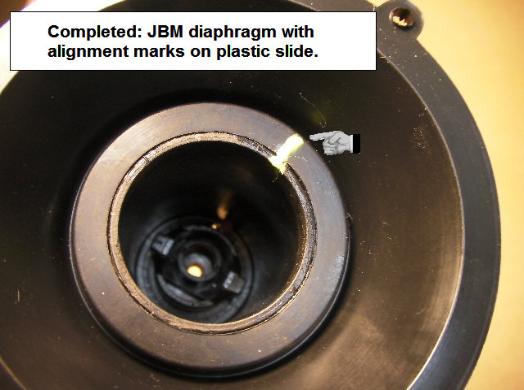

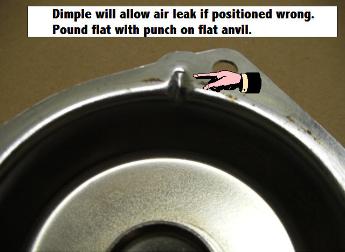

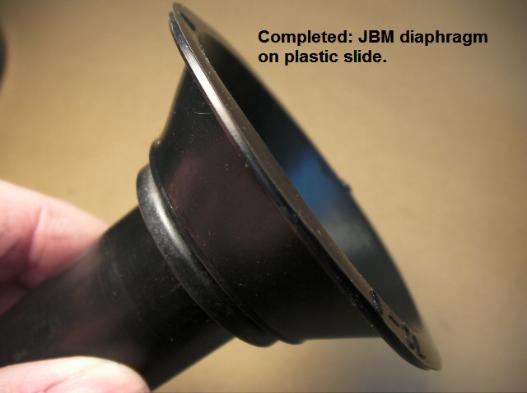

Roll the diaphragm when you install it so it looks like the photo above.

Placeholder Picture

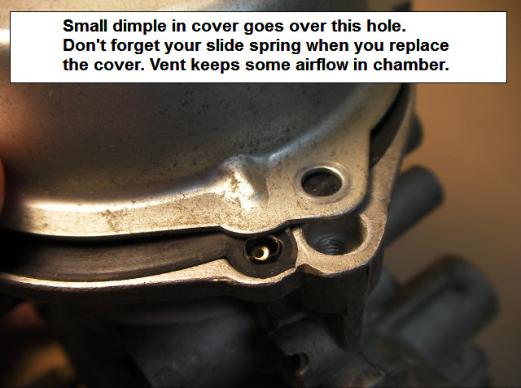

Note:  All JBM diaphragms are made from our special TSR compound for the longest lasting parts available.

Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture
Placeholder Picture

Honda 360 & 350: Air holes in the slide go on the intake side!

Placeholder Picture

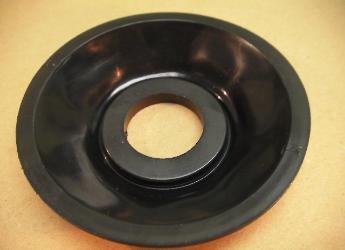

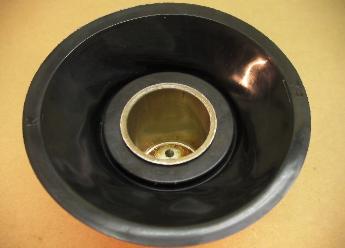

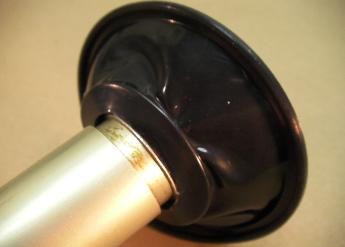

Order K-78mm Keihin Diaphragm for Honda 360

Placeholder Picture

Order K-73mm Keihin for Honda CB or CL 350

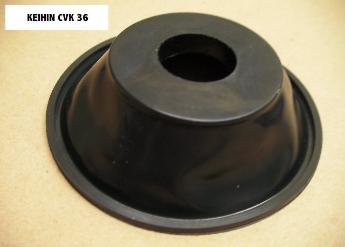

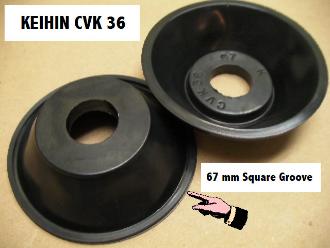

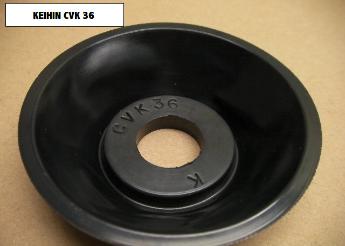

Diaphragms shown here fit the Keihin CVK 36 used on the Kawasaki Vulcan 1500cc & Ninja 900 "FLAT SLIDE CARB"
See note Below about Vulcan VN750 VN700

Placeholder Picture
Placeholder Picture
Placeholder Picture

NOTE ON K-67 Diaphragms: These definitely fit and work on my bike, so they'll work on any Kawasaki Vulcan 750 (VN750) and 95% certain that they'llwork on the VN700 because that was just the 750 in a 700cc version due to the Harley tax in the 80s. These bikes have two Keihin CVK34 carbs in a v-twin setup.
