JBM Hourglass Vibration Isolators

Placeholder Picture

$8.00 USD (Each)

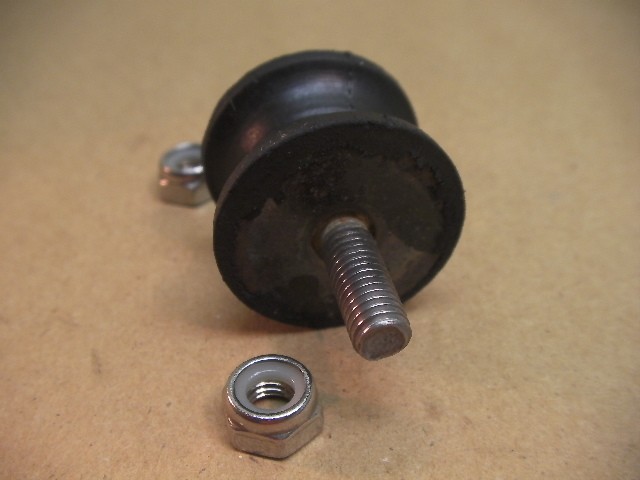

NEW Resilient Vibration & NOISE Isolator made to replace those soft, punky, or cracked original parts. This part is used on air conditioning condensers, radiators, heat shields, fuel and oil tanks, instrument panels, fenders, mufflers, or as a mounting system for industrial relays, or electric motors to isolate noise or shock. These are true "Hourglass" mounts for wide range vibration frequency response.

This part has a 6 mm stud on each end, and comes with 6 mm nuts.  Note: 6mm is 0.230 inch, and fits nicely in any 1/4 inch hole. Height of rubber is 3/4 inch (19mm). Studs are 11 mm long, so fit very nice through 1/4 inch plate or less. Handy for all sorts of things. Get rid of noise & rattles!!! 2 oz. each.

Each mount rated 9 pounds per mount in shear, 50 pounds in compression, 15 pounds in tension. 50 durometer TSR compound.

These mounts will withstand gasoline, oil, ozone, weather, and can operate at 210 degrees F. These are very resilient mounts with frequency response like natural rubber.

These are NEW and recently manufactured.  MADE IN USA
