Diaphragms
H-78
H-68
H-32 Air Valve

$19.50 USD

Installation Steps

Placeholder Picture
Step 1

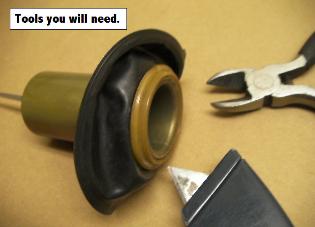

Tools:  Side Cutters, Razor Knife

Placeholder Picture
Step 2

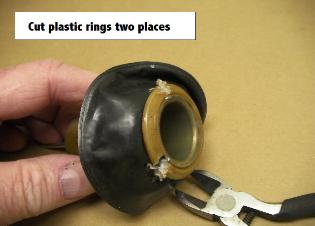

Cut both rings, insuring not to damage slide.

Placeholder Picture
Step 3

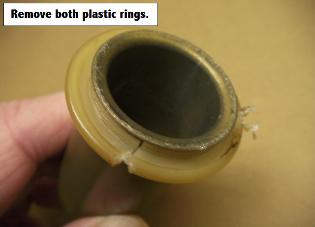

Remove both rings.

Placeholder Picture
Step 4

Slide should be free of plastic rings and undamaged.

Placeholder Picture
Step 5

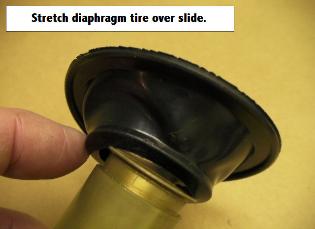

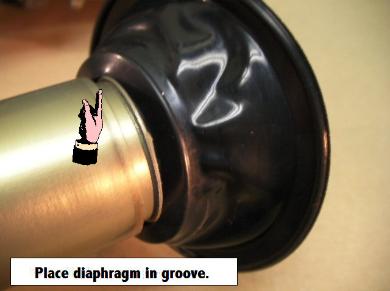

Install diaphragm from the top into the groove.  Do Not overstretch.

Placeholder Picture
Step 6

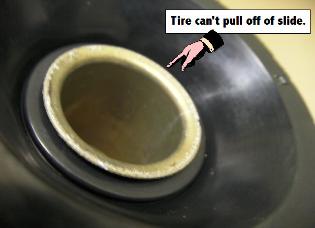

Insure diaphragm is seated in groove.

Placeholder Picture
Step 7

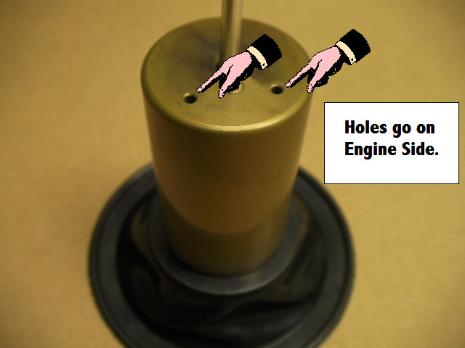

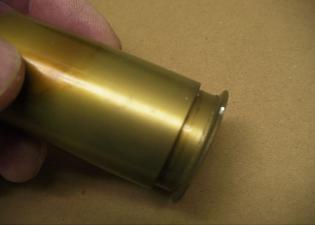

Note the holes in the slide.

Placeholder Picture
Step 8

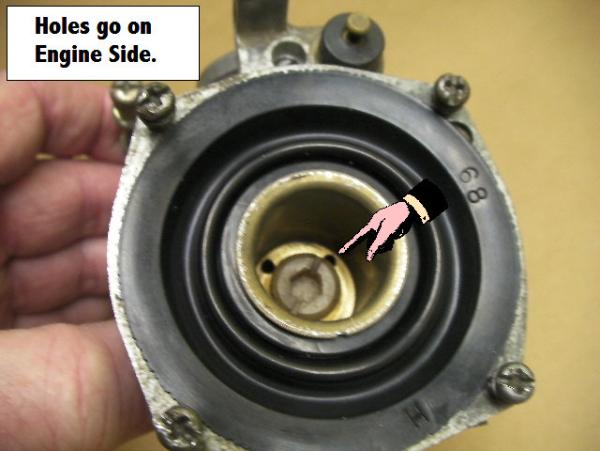

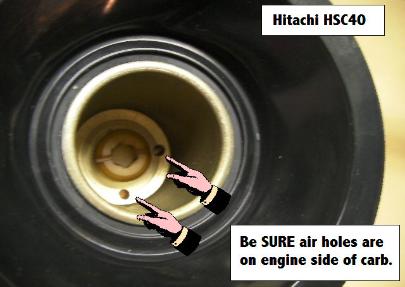

Insure that the holes lign up on the engine side.

Placeholder Picture
Step 9

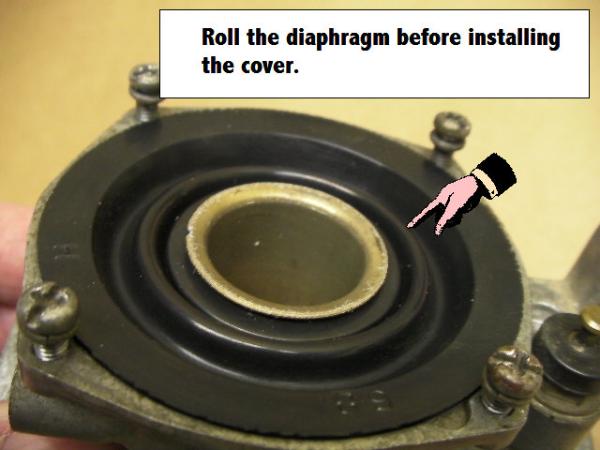

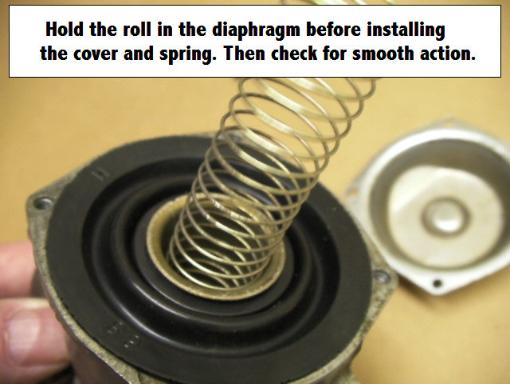

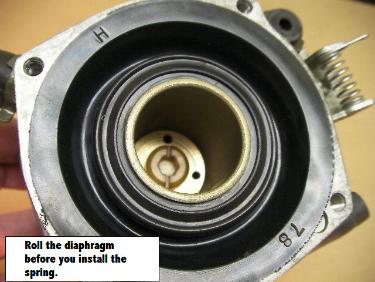

Roll the diaphragm prior to putting the cover on.

Placeholder Picture
Step 9

Support the slide through the intake side of the carb to maintain the roll in the diaphragm as you attach the cover and spring.

Finishing Notes:

To Prevent Rotation or Removal:
Some folks want to use Super Glue adhesive on the slide, and this will not harm anything, but be sure not to get adhesive on the sides of the slide. Use sparingly, as solvents are not good for the rubber.

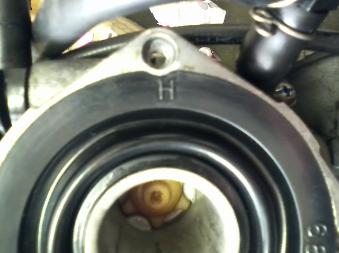

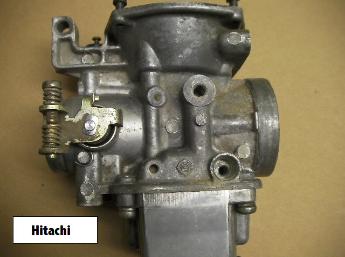

These photos should help you identify your Hitachi Carburetor as there is no name or model numbers on it. This one is a Hitachi HSC32/4H7.00 from a 1980 Yamaha Maxim XJ650G. Hitachi carburetors were used on many other vintage motorcycles.  68 mm diameter groove shown here.

Placeholder Picture

Please note the different lengths on the cover screws

Placeholder Picture

Please note the different lengths on the cover screws

Placeholder Picture

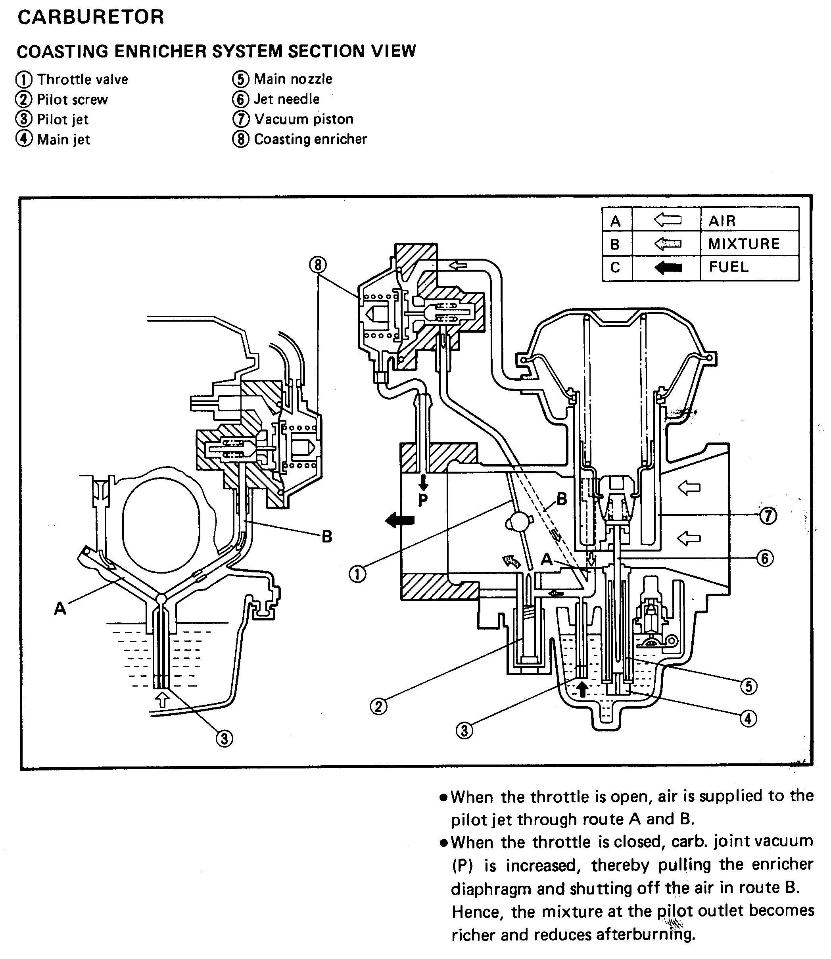

YAMAHA VIRAGO XV700 XV750 XV920 XV1000

Placeholder Picture

Placeholder Picture

Placeholder Picture

Placeholder Picture
Placeholder Picture

Yamaha Virago 78 mm groove

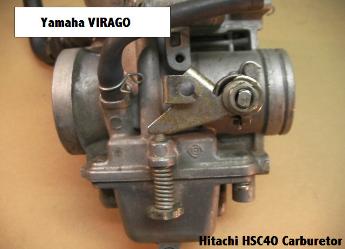

Order Hitachi 78 mm for Hitachi HSC40 Carburetors used on Yamaha VIRAGO XV750,920,1000,1100.  Diaphragms fits fine to Yamaha XV100 TR1

Placeholder Picture

Placeholder Picture

Placeholder Picture

Placeholder Picture

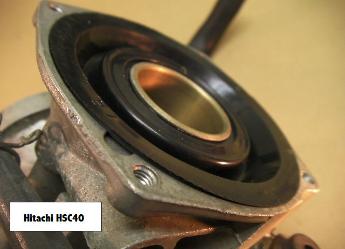

H-32 Air Valve Diaphragm is available as shown below if you need one. Fits HSC40 carburetor.

Placeholder Picture
